2914.0 - 2006 Census of Population and Housing - Fact Sheets, 2006
ARCHIVED ISSUE Released at 11:30 AM (CANBERRA TIME) 22/10/2007
   Page tools: Print Print Page Print all pages in this productPrint All

Image: The 2006 Australian Standard Geographical Classification and Census Geographic Areas - Diagram of Structures

THE 2006 AUSTRALIAN STANDARD GEOGRAPHICAL CLASSIFICATION AND CENSUS GEOGRAPHIC AREAS - DIAGRAM OF STRUCTURES

Census data are made available for a variety of geographic areas, ranging from very small areas all the way up to State level. The available areas fall into two types - those associated with the Australian Standard Geographic Classification (ASGC), and those described as Census Geographic Areas. The ASGC is the standard geographical classification used for the dissemination of a wide variety of ABS statistical data, including Census data, whilst the Census Geographic Areas are specifically created for the output of Census data. The smallest spatial unit defined by the ASGC is the Census Collection District (CD). It is only defined and published for Census years. It forms the basic spatial unit for both the structures of the ASGC and the Census Geographic Areas. Other levels in the ASGC are reviewed annually, with the exception of Urban Centres/Localities, Remoteness Areas, and Sections of State structures.

Most Census Geographic Areas are designed as CD based approximations of other administrative boundaries such as Electoral Divisions and Australia Post postcodes. Some are created for a special purpose such as Remoteness Areas or Indigenous Regions. They allow comparisons of data collected for these common spatial units with data published from the Population Census. The Place of Work Destination Zone and Place of Work Study areas are exceptions in that they are not defined by aggregations of CDs. Place of Work Destination Zones are independently defined by each State/Territory Transport Authority.

Census data can be coded to the following ASGC Areas:

  • Collection District
  • Statistical Local Area
  • Local Government Area
  • Statistical Subdivision
  • Statistical Division
  • Statistical District
  • Statistical Region Sector
  • Statistical Region
  • Major Statistical Region
  • Urban Centre/Locality
  • Section of State
  • State/Territory
  • Remoteness Area


Census data can be aggregated to the following Census Geographic Areas:
  • Indigenous Location
  • Indigenous Area
  • Indigenous Region
  • State Electoral Division
  • Commonwealth Electoral Division
  • Suburb
  • Postal Area
  • Place of Work Destination Zone
  • Place of Work Study Area

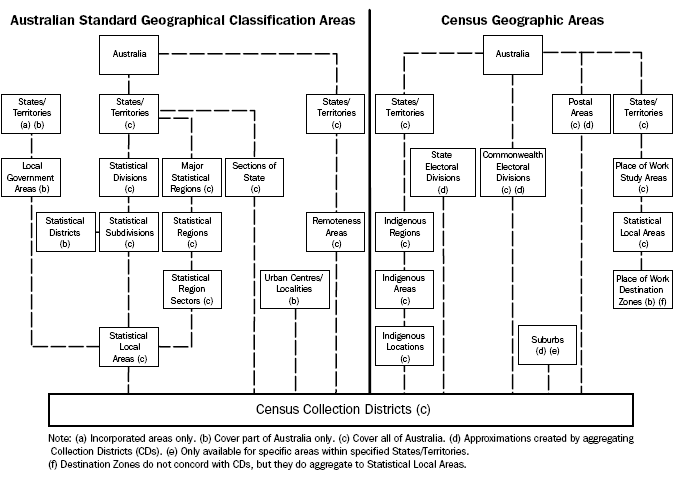

The following diagram illustrates the structures of the ASGC and the Census Geographic Areas for the 2006 Census. Census Collection Districts aggregate to all levels except Destination Zones. Some structures cover the whole of Australia and others cover only part. Areas at each level can be aggregated to create the level above. One example is the ASGC Main Structure where the:

  • Collection Districts aggregate to Statistical Local Areas;
  • Statistical Local Areas aggregate to Statistical Subdivisions;
  • Statistical Subdivisions aggregate to Statistical Divisions;
  • Statistical Divisions aggregate to States/Territories; and
  • States/Territories aggregate to Australia.


Image: Australian Standard Geographical Classification Areas/Census Geographic Areas
