APPLICATIONS OF DATA VISUALISATION


DASHBOARDS

A dashboard is "a visual display of the most important information needed to achieve one or more objectives; consolidated and arranged on a single screen so the information can be monitored at a glance." (Stephen Few, 2004)

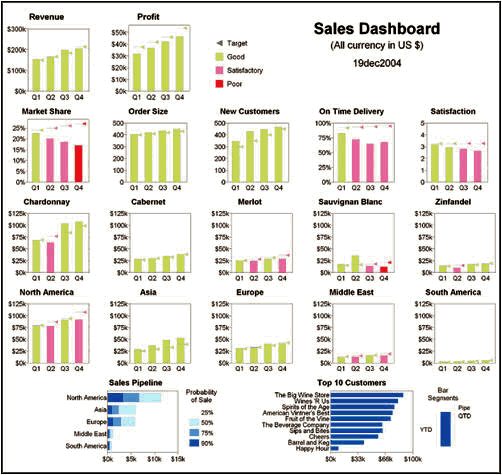

Figure 1 illustrates various sales measures for a wine business in a dashboard format. Key information on quantitative and qualitative factors are comparable through the use of column graphs with colour and symbols. Instead of users having to trawl through this information in a standard report format, with a quick look at the dashboard they are presented with an overall impression of performance.

There are many features that contribute to this dashboard being able to present a statistical story. Firstly each graph in the first four rows represents the last four quarters, or the annual performance. They are all striving towards telling the one story. This attribute of consistency across the graphs is very important. Secondly, the use of column graphs help to make the data and the changes stand out. Other statistical graphing techniques could have been used, (e.g. line or dot graphs) however for impact and instant recognition, column graphs provide more value. The use of colour is effective in helping to highlight levels of performance, however in this example it would be more beneficial to have greater contrast between the green, pink and red in a similar way to how the blue is contrasted in the Sales Pipeline bar graph. The target levels may be useful for the management of this company, however may not be relevant for ABS statistics.

There could be a misconception about dashboards that a few graphs on a page equals a dashboard. This is not the case as there are many issues to be considered. For example Figure 1 illustrates how graphs have been meaningfully arranged on the page. The revenue and profit figures, usually a high priority for a company's management, are placed on their own row at the top of the dashboard. If the user requires a further breakdown of information by different categories (e.g. type of wine, continent) they can look in the subsequent rows below. The two graphs at the base are also useful. For example, the stacked bar graph, which is not often utilised in ABS statistical publications, is used effectively here through analysing probabilities of sales. Another feature, available through a html overlay,is the ability to link to the supporting data by clicking on the various graphs. This is a great advantage for users who may seek more detailed information than that presented in the dashboard.

Dashboards rely upon simplicity. Johnson (2006, p.25) believes that dashboards are "a tool that simplifies multiple sources of information and allows us to focus on what really matters". Modern business practices rely upon quick and decisive actions and the information required to achieve these goals need to be presented in a format that allows this to occur. With information overload a very real concern Johnson (2006, p.25) believes that dashboards "sort through the chaos of overconnectedness and replace it with "meaningful" connectedness."

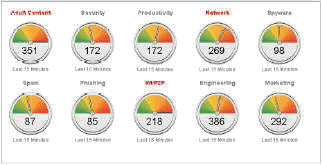

Simplicity in dashboards also refers to its design. How can information be simple to analyse if it is not presented in a format that is recognisable and understood by its users? There are many examples used and marketed by organisations with irrelevant dials and graphical techniques that serve little purpose in achieving dashboard objectives. Stephen Few (2005) believes this is a real concern in this field, as indicated by his statement that "most dashboards I've seen, especially vendor examples, suggest little concern for communication, but a great deal of concern for entertainment." Figure 2 could be described as an example of this concern.

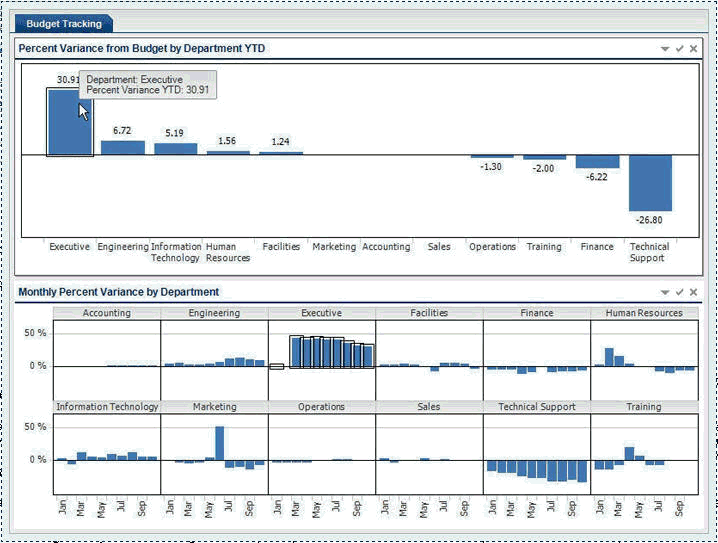

Dashboard creation is a difficult task, as condensing a large amount of information into a readable and informative format can result in a variety of issues. The best dashboards communicate information easily. An example of this is Figure 3. There is nothing complicated about its design. Column graphs are well recognised as a graphical format and the colour scheme does not reflect all the colours of the rainbow. The most important information or annual overview is displayed in the large graph at the top with this being broken down even further for each department in the lower graphs. With the top graph being this size, the use of numerical text and the hover-over function, to indicate the exact figure, are useful additions. This may not work with smaller graphs as it may appear too cluttered or the columns may be so small that many users will have difficulty in allowing the mouse to rest over them.

Another common issue with dashboards is the ability for users to place too much emphasis or reliance upon them. Few's (2004) definition used the phrase "monitored at a glance" and this is critical. Dashboards should only be used to give a quick understanding of the data and users should not become "over-reliant" (Bednarz 2006, p. 1) upon them. They must be supported by the report or underlying data if they are going to have any meaning. Therefore a link to the original data should always be supplied with a dashboard. Consequentially, users of dashboards should acknowledge this issue and only use them for a brief overview or as a guide for searching through background information.

SPARKLINES

Sparklines are "data-intense, design-simple, word-sized graphics" as defined by Edward Tufte (2006). As Gibbs (2006, p. 36) states they are intended to be "instantly understandable without adding unnecessary detail". Essentially they are small graphs that provide an instant story-line or trend that provides context to the surrounding data. Examples of sparklines can be seen in Figure 4.

Sparklines are about communicating "trends rather than detailed data." (Gibbs, 2006, p. 36) If there is a requirement for a detailed graphic illustrating all aspects of the data being analysed, sparklines are not the solution. However this is not their purpose. They exist to assist an audience to gain a greater understanding without disrupting thought processes, whilst adding value to the data. Sparklines can be included within sentences, in tables and even around other graphics to provide background information and trends. Often large graphics distract the audience away from the messages being presented. Sparklines instead compliment and assist in the story-telling mechanism.

The need for maximising data density is critical. It refers to taking into account the size of the graphic in relation to the amount of data displayed (Tufte, 2001, p. 105). He believes that through shrinking a graphic to the minimum size whereby its meaning is not lost, greater value is provided. Tufte qualifies this issue through his analysis on the remarkable nature of our eyes to make numerous distinctions within a small area. This should be taken advantage of, and sparklines do this. Why should our eyes have to scan and evaluate more space then they have too? Simplicity is the key.

Sparklines are not restricted to time-series line graphs. Numerous examples of common types of graphs, expressed as sparklines, are discussed below.

Figure 5 - Source: Downloaded from http://www.bonavistasystems.com/index.html

The examples above illustrate that there are numerous ways of adding even more value to a standard sparkline. Besides changing the graphical depiction of the sparkline additional text can be placed in and around it, within reason, to achieve this goal. This text is also used to compensate for the lack of an axis on a sparkline.

The additional text that supports a sparkline generally takes the form of showing the highest, lowest and current figures or the opening and closing figures. The option chosen will depend on the data being displayed. If a time period context is required, using opening and closing figures will be more beneficial. However for a vertical scale or size context, using highest, lowest and current figures will be the best option. Figures 6 and 7 illustrate stockmarket figures and use the highest, lowest and current option as it will provide more value to their users who are after trend value information.

The concern with providing additional contextual information to a sparkline is the issue of space. Firstly the size of the text must be readable for users. Secondly there must be appropriate space between the text to ensure a lack of clutter. Thirdly it must be ensured that it is placed and formatted in a way that can easily be understood. Consider Figure 8. The lowest point and the current point are so close together that it appears disorganised and difficult to understand in "a glance." The eye must take those extra few moments to distinguish between the two data points and evaluate what it is trying to show. This is not an example of an effective sparkline.

From an accessibility perspective the size of the sparklines is an issue. However enlarging their size removes their usefulness. Therefore to overcome this problem, enlarged graphics should be provided or available from another location. Colours are also very important. There is not a set colour pattern for how the data points should be represented. It is also relative to the number of points being referred to on the sparkline. A very common colour scheme is the use of red for the lowest, green for the highest and blue for the current points. Various tests should be undertaken to ensure that not only are the colours acceptable from an accessibility perspective but that the reference points are of a size that these colours are distinguishable.

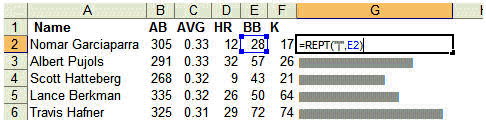

The simplicity of the sparkline design has led to many unique adaptations and uses. One of the most practical and easy to create designs is the ability to make in-cell bar graphs using a spreadsheet package. With the use of a column and a simple formula, in a glance users can gain an understanding without the need to scan up and down the numerical data. Consider the spreadsheet in Figure 9. It illustrates batting statistics for a number of baseball players. Although player data is available in a column, through a simple formula a bar graph can be created to highlight a particular statistic. In this example the bar graph shows the number of time the batter has received four balls and walked to first base, BB (Base on Balls). This technique is particularly useful when analysing a lengthy list of data.

Sparklines may be criticised for their inability to appropriately display the time variable. As one of their primary uses is to display time-series data this is a particular concern. Figure 10 not only is able to alleviate this problem through an effective design, but combines a few other visualisation tools to present a very effective story. As mentioned above, column graph sparklines are particularly useful when analysing data that only has two options, in this case a victory or a loss. The time period along the base helps to illustrate from when Isiah Thomas became president of the New York Knicks until the end of the 2005-6 season. It is based on the number of basketball games within the seasons, not days and years. There is a clear separation and distinction between these periods and there is no system of numbers like in Figure 6, which relies upon either knowledge or common-sense from the user.

There are a few other useful elements in this design. The use of colour is particularly commendable. Within the sparkline a very light blue colour indicates a victory whereas a dark navy blue is used to signify a loss. This contrast is beneficial for not only those who are colour-blind but also reflects the cultural associations that a dark colour often signifies an unfortunate event. This dark colour also stands out more, which reflects the aim of the graphic, to display the poor performance or losses by the New York Knicks over this period. Colour is also used in the coaches row. Notice how Herb Williams does not have a light blue background behind him. The reason for this is to signify that he was only an interim coach and the club was in a transition period. Another useful feature of this graphic is the text that helps to explain the meaning of the story being displayed. A bold text headline is used, to attract those users who are familiar with Isiah Thomas, and then a small description is used to help explain the story. As important and useful that the graphic is, users may not fully recognise its purpose without this brief description.

SEARCH CLOUDS

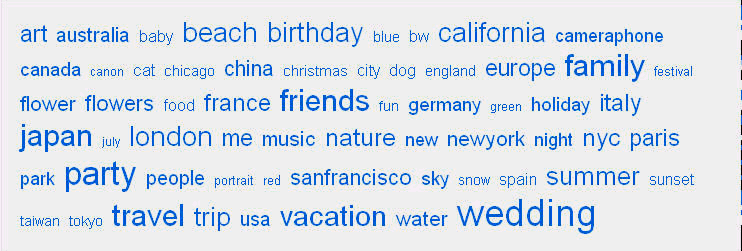

Search or tag clouds are a growing trend amongst many web sites. An example can be seen in figure 11. They are a visual depiction of the most popular terms that people have tagged or visited and link to associated pages. The larger the term, the larger the popularity.

There are two types of search clouds. They look the same however the reasons for the size of the tags distinguishes them. The size of the words can either be based upon how many times a tag is allocated or applied by those operating the website or by the popularity associated with external users searching or selecting a tag.

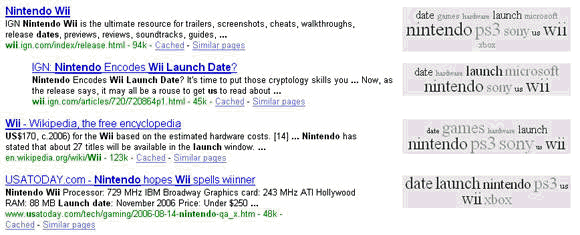

Search clouds can do more than just highlight key terms or illustrate the most popular items. Nagy (2006) proposes that one of their most effective uses is in providing contextual relevance after a search has been conducted. The mock-up he created to illustrate this point is seen in Figure 12.

This example used a search for "Nintendo Wii Launch Date". This would provide him with a large number of results to choose from. However through the use of search clouds, which show the frequency of related words on each page, with a quick glance he can narrow his search down even further. Although it is the fourth site on the list, this result highlights all the key terms being searched for and may be a better solution then the first result. The third item on the list highlights 'games' as a major term and although it may not have been the desired result for the user, it may attract their attention and invite them to visit this site. Search clouds used this way simply provide more context or background information to assist with a search.

As well as providing assistance in finding appropriate sites, search clouds also have the ability to eliminate irrelevant search results. For example, Hoekstra (2006) highlights how search clouds would help in searches using terms that have multiple meanings. For example she discusses how a search for RSS would generally produce results on Really Simple Syndication, the news or blog update service, however in one particular search it brought back a result on a problem with Macbook computers known as Random Shutdown Syndrome. Through further investigation she found out that there are at least 40 different abbreviations that are known as RSS. With a simple search cloud next to these search results relating to Macbooks can instantly be eliminated.

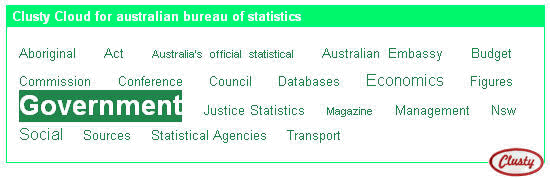

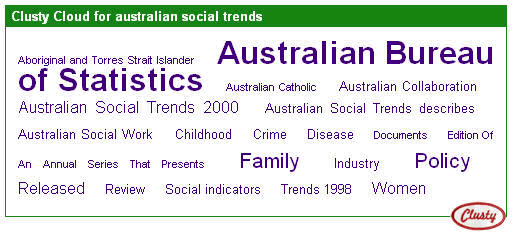

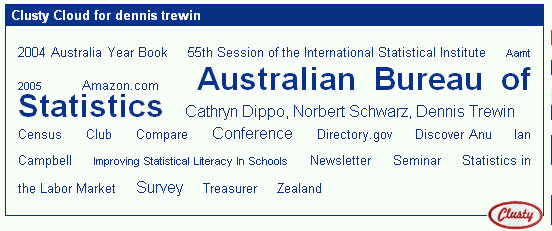

There are many other uses of search clouds. Clusty Cloud creator (2006) highlights many useful applications of the search cloud:

Make a Cloud about a person so that visitors to your site can find out more information about them

Make a Vanity Cloud about your website to see how it is in the news or what people think about it

Include a cloud after a page or document to show all the highlights or most popular issues

Although Search Clouds are growing in popularity many users will still be unfamiliar with their look and purpose. To see a box with some large and small words in what appears to be a random order may alienate many users as it can appear untidy and unnecessary on a web page. If the users do select a term, their vision of where this takes them may be different to the page they arrive at. They may be taken to a list of search results or to a related page, e.g. (Consumer Price Index product page). Appropriate metadata should explain the linked page. Another consideration should be the font size. The smallest font should not be so small that sight-impaired users will not be able to see them. Relevance is lost if these smaller terms cannot be seen.

GAPMINDER

Gapminder is a non-profit venture for development and provision of free software that visualise human development. It began in 1998 when Ola Rosling, Anna Rosling Ronnlund and Hans Rosling had an idea to enhance the understanding of world health. Since then it has grown into an organisation that develops one of the most talked-about data visualisation techniques available today. With their vision to make sense of the world by having fun with statistics, their work is widely recognised and applauded.

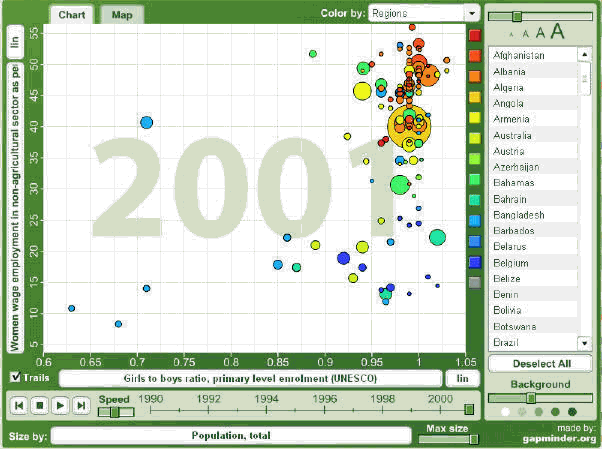

There are a variety of Gapminder examples, although most follow a similar layout. This discussion will focus around the example seen in Figure 16 which relates to the millennium development goal indicators. It has a variety of features that allow for the customisation of the graph. There are the two axes that can be changed to illustrate certain variables and the scale, certain countries or regions can be highlighted, the size and shading of the background can be modified, the graph or map option exists and the animated aspects can be adjusted for speed and year details.

There are numerous advantages and benefits associated with the Gapminder product. Its colourful and attractive presentation can capture a user's imagination and gain interest where a standard graph may not. Its interactivity and animation with numerous variables and features provides a visualisation that should not just be seen with a glance. Instead it should be explored and played with to uncover stories and find interesting facts relevant to the user. The usefulness of this product lies in its ability to show relationships. These relationships lead to stories and these stories lead to knowledge and a greater understanding of statistics. For Gapminder, and any users, it is this ability to create awareness that links back to the original objectives of this product.

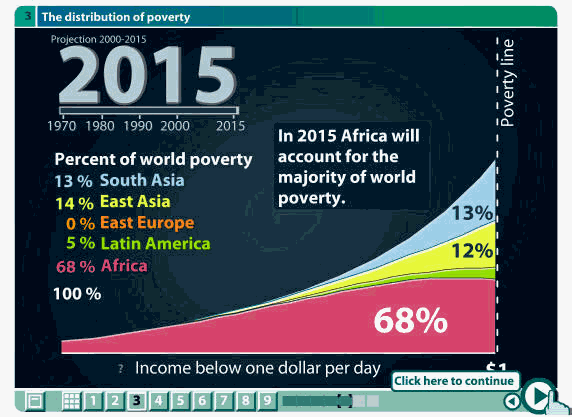

The second type of Gapminder presentation is displayed in Figure 17. This technique provides the user with the complete story. It works in a similar fashion to a visual slide presentation, however it always includes animation and certain slides are interactive. It 'walks the user through' the story, rather than giving them free reign to modify and create their own story like the example seen in Figure 16. In a way it provides a prepackaged product. This may benefit many users who may find it difficult to find their own stories, however it takes away the freedom and may introduce a level of bias. The best examples are when this type of story is presented but the last slide is an application like Figure 16, which will allow the user to also locate and discover their own story.

The technology or animation behind Gapminder is through the use of Flash. Gapminder developed the free software Trendalyzer which imports data and shows moving graphics on the screen as exported Flash files. However the majority of the projects are stand-alone software (.exe files) and can be downloaded and used on a PC without the need for any players or programs to be run. Gapminder are currently developing a product for external use.

Blum's (2006) article about Gapminder stated that having better tools to analyse data "encourages closer examination". Gapminder is certainly one of these tools. It helps to illustrate statistical stories in such a way that it may uncover unique links or relationships that should be explored further. It has enormous possibilities as a data visualisation technique, however it must be ensured that it is used appropriately. It must be user-friendly and accessible to the common user if it is to succeed as more than just a presentation tool. Blum states that the "intended audience is not lay people, but researchers, civil servants, journalists and activists who will then present their graphical analyses to a broader public". However if it truly is to succeed as a tool to enhance understanding and educate the public, it must work at an appropriate level for a general audience.

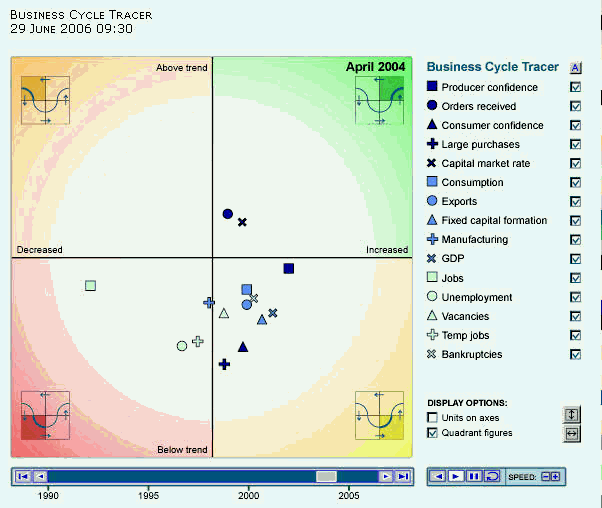

Although Gapminder is a very unique product, it is possible to reproduce its general attributes using alternative software. There are a few examples that reflect many of its attributes. One such example can be seen in Figure 18. This Business Cycle Tracer visualises the key national statistical trends using animation to illustrate the time variable. It is an unusual concept in that each quadrant of the graph indicates a particular part of the trends performance as seen on a line graph. So it is actually visualising a visualisation in that the data is actually the statistics line graph. It has many similar features, such as the ability to toggle the desired boxes and the time bar across the base of the graph.

MINDMAP SEARCHING

Searching the internet or a website has become one of the most natural web navigational techniques. It is one of the most important design elements on any website. Searching has evolved in recent years with the introduction of a number of different search tools and techniques. Advertising, tagging and advanced searching tools are just some examples of ways in which search engines are doing more than just finding a list of relevant web sites.

One current technique that is gaining popularity is a form of searching that creates mindmaps or links between various terms rather than just producing a list of results. The primary benefit of this type of searching is that users may find alternatives or options that they had not considered searching or looking for. In a way it is advertising. That is, it is trying to take the user somewhere or make them do something they had not planned on doing. This makes for a very useful tool and can provide benefits to both the user and the website producer. Nielsen (2003) stated that the reason why search ads work so well is because "search engines are the one type of website that people visit with the explicit goal of finding someplace to go." This is the basis behind mindmap searching.

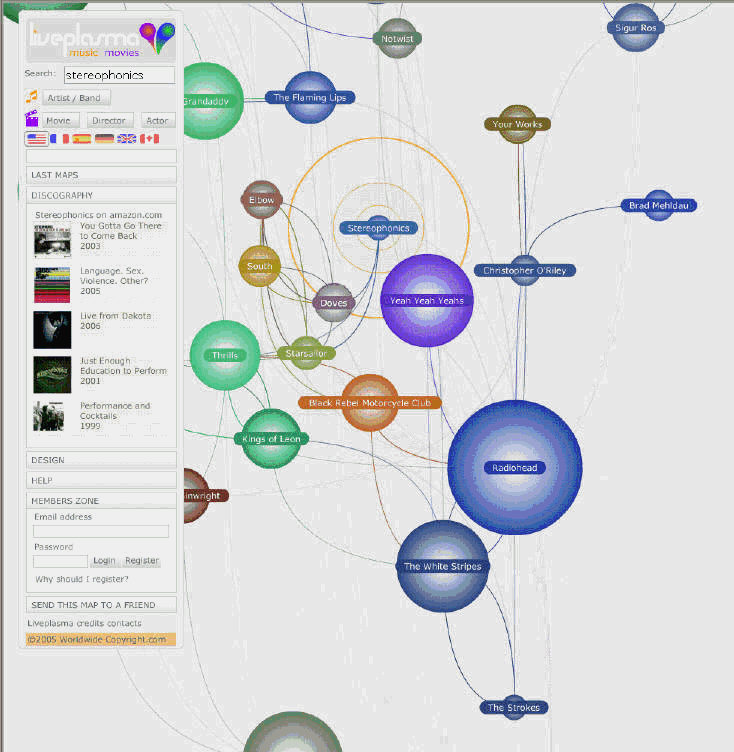

Figure 19 illustrates a unique mindmap searching tool for music or movies. This example illustrates various links between a number of artists based upon a criteria. The size of the circle or bubble represents the popularity of the artist. As this website does not appear to explain its methodology this may be based upon the amount of searches, album sales, recognisability or a number of factors. The colour of a bubble represents the style of music that each band has been classified into and similar colours will reflect similar types of artists. Lines are used to illustrate which bands are linked to each other.

There is more to this example than simply showing links between various artist's. By hovering over an artists bubble, a star will appear which will then allow the user to place them in a favourites list. This favourites list will allow them to come back and find these artists in the future or send them to their friends. Another great feature available to members is the ability to receive news about these favourite artists that have been bookmarked sent straight to an email address, a similar function to Really Simple Syndication (RSS). Another interesting feature is the discography section on the left hand navigation which advertises products (CDs) from the artist that was searched for. This provides added context and possible future assistance in learning more about the artist.

These interesting facets of this search engine can all be used to benefit the search for statistics, enhance statistical literacy and even tell a few stories along the way. Instead of artists various statistical products or concepts could be used. The popularity based upon search results or downloads could be used to signify the size of the bubble, colours could represent a statistical category or topic and the lines would again link these bubbles. A member's section could be created to allow favourites to be selected and possibly be incorporated into the current RSS system. Advertising to various statistical products could also be used in the left hand navigation to attract users to products that are associated with their search which they had not thought about.

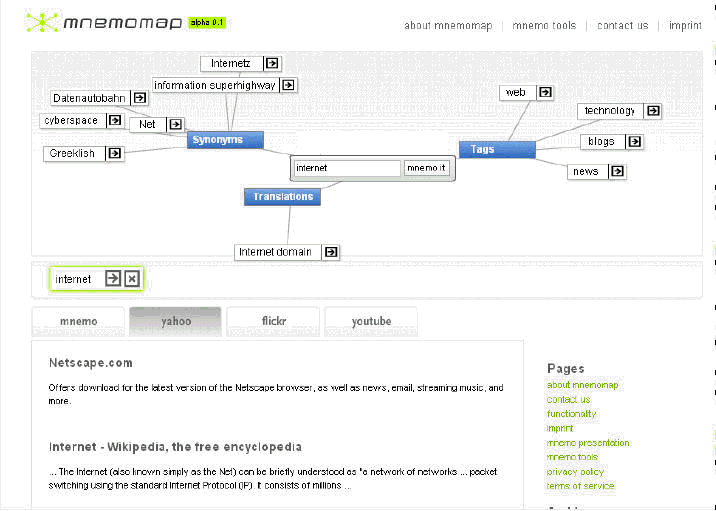

Another example can be seen in Figure 20. It is more of a traditional search engine and has a few added functions. The first is the additional branches that allow for such items as synonyms, translations, definitions and tags. This could be especially beneficial for a metadata vision that would allow users to find out a definition of a statistical term or link to how others have used this term in news articles, blogs etc. Another useful function is the little arrow next to a branched search term. For example clicking on the arrow next to "Internetz" will redirect the search so that this term is the focal point and branches stem off from it. Furthermore the bar beneath the search area acts like a memory of recent searches or like a breadcrumb trail.

Mindmap searching will not necessarily find a desired page, normal searching is probably best for this. Instead it should be used as a tool to interest, guide and promote users around a website. With the enormous array of existing statistical products and terminology, this type of visual tool may solve many problems. The concept of a mindmap is not new, that is one of its best qualities. Users are familiar with the concept and will hopefully quickly adapt and enjoy the benefits of this technique. There are numerous possibilities in its design. Ultimately it could become a key navigational technique around a website, as if designed appropriately any statistical search term entered could link to all its uses on the website from information to definitions to downloads etc.

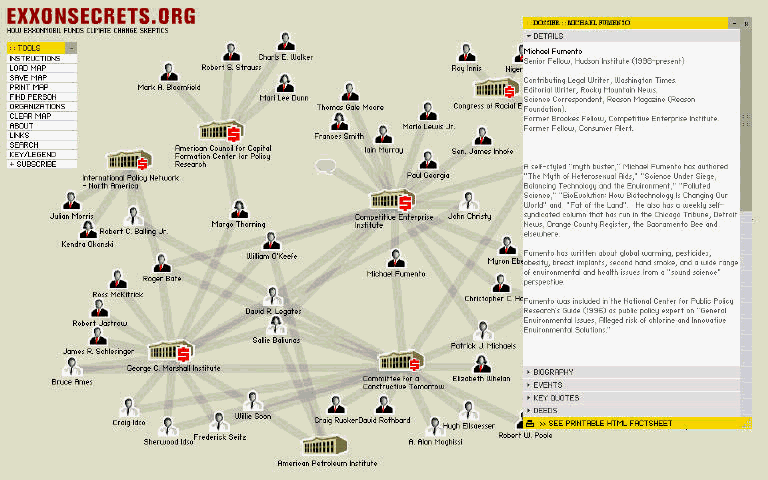

Mindmaps do not necessarily have to arise from entering a search term. Instead they can be used for their more visual technique of showing linkages and relationships between various entities. Figure 21 is an example of this from a website looking at the influence of Exxonmobil on the issue of climate change. This reflects the common mindmap studying technique of taking ideas, concepts or entities and showing how they connect to each other. Many students use them as a visual aid to assist them in remembering different aspects of the subject they are studying. In this example users are able to import organisations or people into the map and the software will show how they are linked together. These entities can then be moved and shaped around so that the user has greater control over the design of the mindmap. These factors help to tell a story by allowing users to visually conceive who has influence, power and the contacts to explain why events unfolded as they did.

The added advantage of this type of mindmap over a students mindmap is that this is interactive and further data and information can be accessed at the click of a button. Users are able to select people or organisations and bring up information boxes like the one seen on the right above. This provides context or background information to further enhance the stories being created. It is essentially a visual playground from which stories can be constructed and manipulated to the advantage of the user.

The disadvantages of these mindmapping tools lie in their accessibility. This sort of design would be very difficult to reproduce in HTML as well as in a format that would be readable by sight-impaired users using screen readers. In terms of usability there may also be concerns of a user's ability to use and understand the movement and links that they may not be used to in a search engine. Therefore it is essential that appropriate help and documentation is available to help users take the advantages available away from this technique.

TREEMAPS

A treemap "is a method for displaying information about entities with a hierarchical relationship, in a "space-constrained" environment" (Wikipedia, 2006) The idea for their construction arose in the early 1990s when a university professor, Ben Shneiderman, had difficulty managing the small amount of hard disk space he had available on his server and required a way of showing his tree diagrams "in a space-constrained layout." (Shneiderman, 2006)

Treemaps display rows of data as groups of shapes that can be "arranged, sized and colored to graphically reveal underlying data patterns." (Wikipedia, 2006) It not only condenses information into a more compact and manageable form but it also allows for the recognition of relationships or patterns.

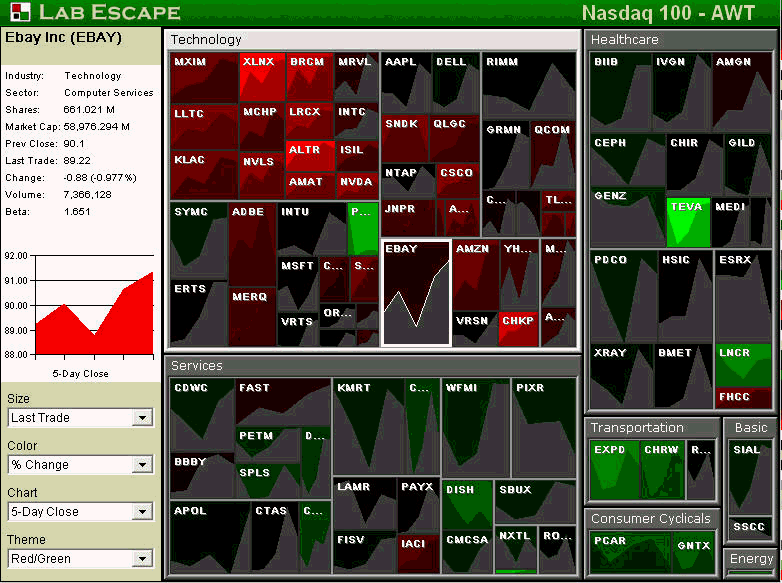

An example of one company that has taken a different approach to treemaps and expanded on the traditional layout can be seen below. Figure 22 takes information from the Nasdaq 100 to highlight a great deal of information in a small amount of space. At a wide level the size or importance of each stock is related to the size of the shape that it occupies. Similarly each categorised group (e.g. Technology, Healthcare etc.) is grouped according to its relevance and size. Different stocks are colour-coded to indicate a certain type of performance and when selected, information on the selected company is displayed on the left of the treemap. Furthermore the drop-down boxes in the bottom left hand corner allow the treemap to be customised to a greater extent.

However the most attractive statistical addition to the lab escape example is the use of area graphs within each shape. In terms of a data visualisation technique it works in a similar way to sparklines in that in a glance the user can gain an insight into the recent performance of a certain indicator. The ability to quickly look at the different stock and see a trend or story of performance is informative and easy on the eye. Treemaps are designed to condense information, however if it is too dense, meanings and derivations are lost.

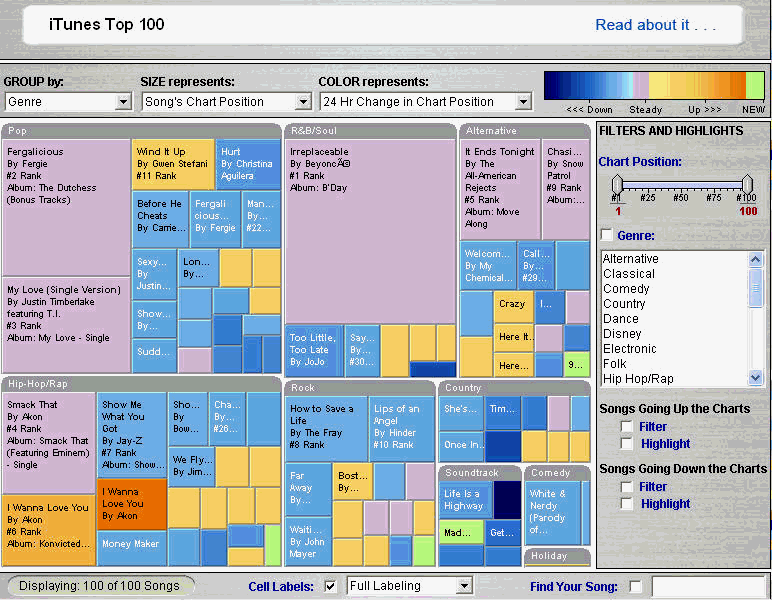

A criticism of treemaps may be that they look colourful and interesting but they fail to simply explain the information being presented. Asahi, Turo and Shneiderman (1995) discussed their capabilities as a decision-making tool. If they fail to simply explain the information this capability is lost. Figure 23 is an illustration of one of the most attractive and useable examples of a treemap. It shows the most popular songs being downloaded and can be used as a decision-making tool to help users select songs they may wish to purchase. The musical genre tags help to categorise and break down the songs into a readable format. A good technique here is that only songs with a large enough shape or box state the name or a part of the name. This helps to avoid clutter and places more emphasis on these most popular songs. The problem that this arises is if the user is only interested in country music as this genre is not as popular and their songs are difficult to identify. To correct this problem, the ability to click on the country tag and a similar treemap for country music only is provided. This ability to drill-down through treemaps adds further detail and more information for the user.

The other useful additions to this treemap are all the variables and additional information that can be gathered from the surrounding options. The ability to change the grouping, size and colour as well as the filtering and searching options are all beneficial tools. The colour guide in the top right corner is also very easy to understand and use in identifying various aspects of the treemap.

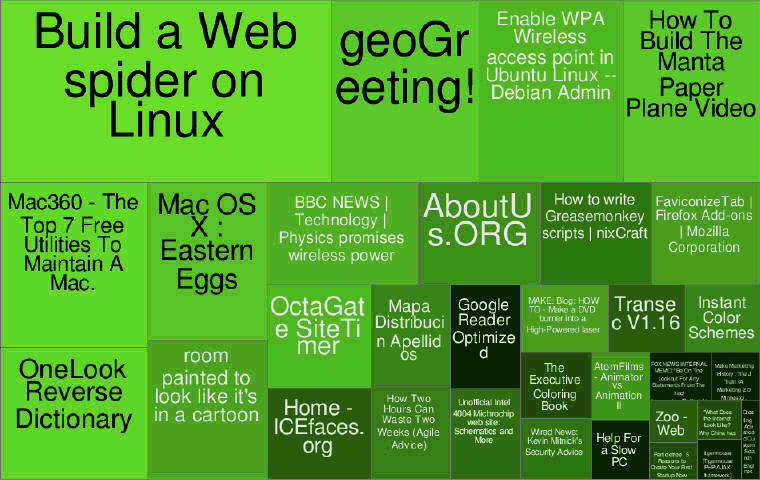

In a way treemaps are similar to search clouds in that they are trying to quickly highlight the most popular or important aspects of data. One example that reflects many of the properties of a search cloud can be seen in Figure 24. This example highlights the most popular pages or tags. Instead of just using a single box with different words or phrases in bolder text to indicate their level of significance, many different sized boxes are used and the subsequent text size is proportionate to this size. The reason why a treemap may be used over a search cloud in this case is the fact that the pages being linked to are described in more than just a single word or two. Instead the headline or major aspects of the page take up slightly more space to entice readers.

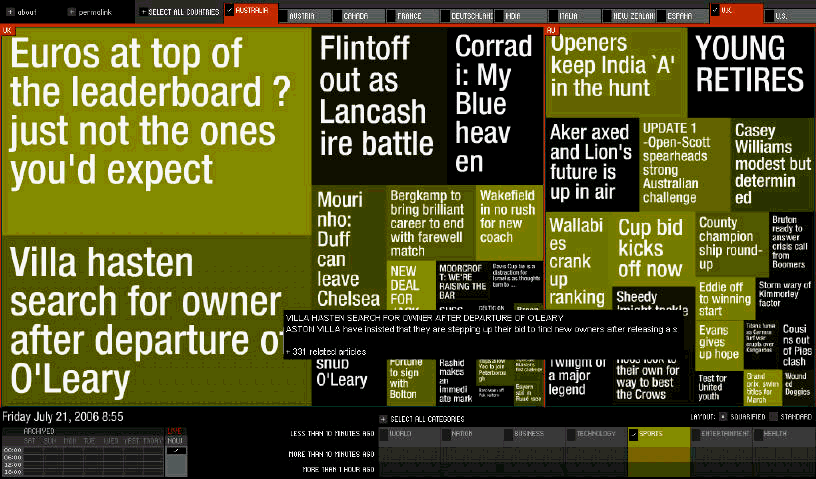

An example that further builds on these ideas can be seen in Figure 25. The same principles apply however many more variables and options can be taken advantage of. This site only deals with news stories and headlines are presented in the treemap boxes. An added feature is that when the user hovers their mouse over the headline they will be given the first line of the article to provide them with more context to enhance their decision of whether to read the entire article. There is also the option of selecting the related articles expansion which will allow the user to focus in more detail on the issue or news story they are trying to learn about.

The additional options available with this example are very useful in this news context. The ability to choose articles from specific countries as well as the news genre are very useful and allow for the filtering or subsetting of the data. However the addition of the time variable adds even more value to this treemap. The option of being able to find the most recent stories or from an archived date provides a great database of information.

The concerns over these headline treemaps reflect those of all treemaps in that they may appear too cluttered for many users. This is especially the case when dealing with large amounts of text, such as displaying headlines in this format. However if a balance can be achieved between font size, colour and the number of boxes or shapes their ability to convey a message will succeed. The idea and opportunities for treemaps are certainly there, it is just a case of gaining the most out of them through appropriate design.

STORIES CREATED THROUGH USER INPUT

As Walker and Antanies (2006) discuss, data visualisation tools have the ability to empower those that use them. Role plays are an example of a learning technique and their advantages lie in participant involvement. The same can be said about data visualisation tools. Users will gain a great deal more and discover their own stories if they have some input into the statistical presentation process.

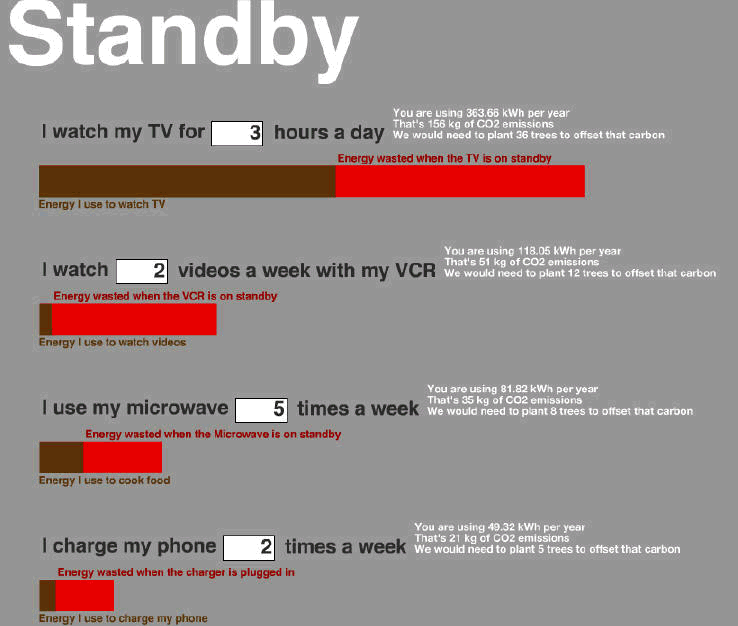

Figure 26 illustrates an example where a user can answer a few simple questions and the subsequent data is visualised and explained. As a user enters how often they undertake the various activities, the bar beneath expands or contracts to illustrate how much energy is used and further information is provided. It is a simple, yet effective technique that can engage a user.

To enhance this technique further a scale on the expanding bar could be adopted. Depending on the data being visualised, the need for text may be removed if appropriate metadata surrounding the bar is supplied. It may also be more beneficial to use some other form of visual effect other than a bar. A line or pie graph may be more effective or even the use of sparklines.

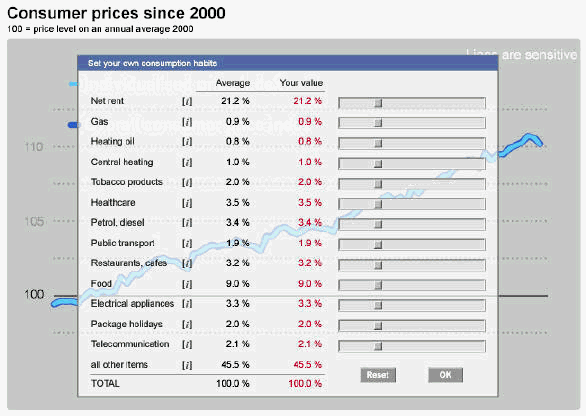

A relevant statistical example, which requires user input, has been developed by the Federal Statistical Office Germany. It allows users to customise their own Consumer Price Index (CPI). The Index calculator, illustrated in Figure 27, provides users with the option to adjust the average consumption habits that make up the CPI, in accordance with their own spending activities. Sliders are used to adjust the percentages and this is reflected in an individualised line graph that overlays the overall CPI graph.

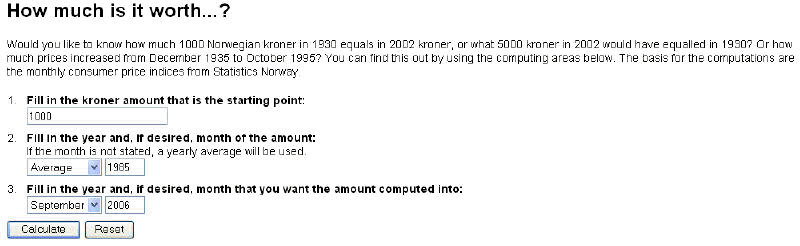

Statistics Norway has also introduced a CPI calculator, see Figure 28. Although it does not have a visual aspect to its design, a graph could easily be developed to display the data requested by a user.

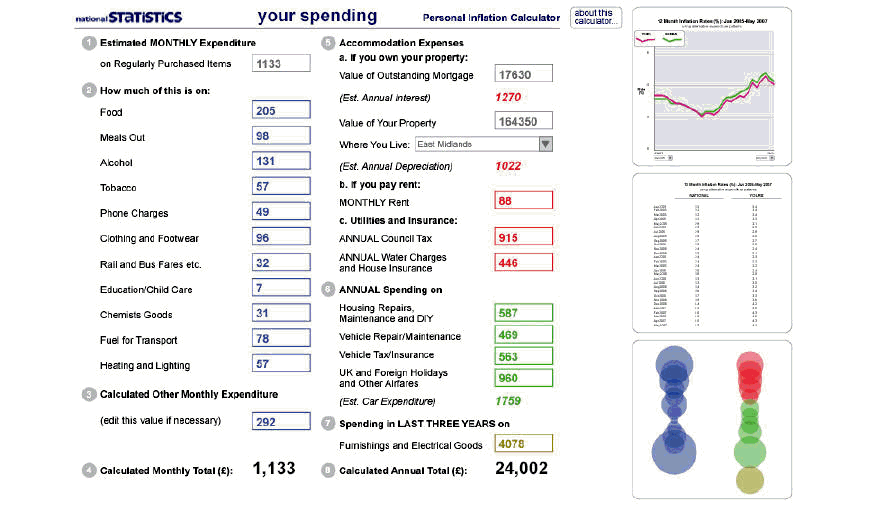

The Office of National Statistics (ONS) website has another variation on visualising the CPI. The advantage to this design, as illustrated in Figure 29, is that users have the ability to input monetary figures. This allows users to see a more direct relationship between the changes in CPI and the impact upon their spending habits. A line graph, a table and a bubble graph then provide an interactive element to displaying the data.

IMPROVING STATIC TWO-DIMENSIONAL GRAPHS

Graphing raw data "often leaves important aspects of data undiscovered" (Cleveland, 1993, p. 1). This is often the case with many graphs failing to appropriately portray their message, either through inappropriate or neglectful metadata or by simply not highlighting stories evident within the data. Static two-dimensional graphs have existed for centuries and they will always have a place and be needed in statistical presentations. However this does not mean that improvements and new techniques can not be implemented to help bring these stories to the surface.

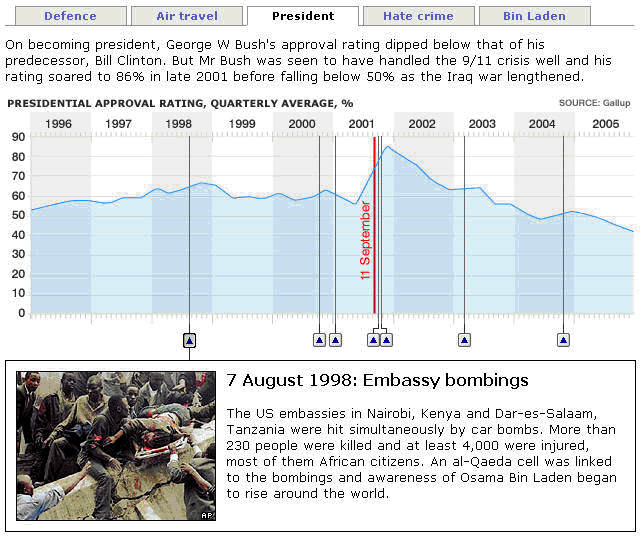

A simple technique to improve a time-series graph is to provide context to various data points through the use of news stories and background information. The example from the BBC news website below is a very good example of this. An area or line graph is used to illustrate the US Presidents approval rating over the past ten years, which in itself is a useful graph. However three different pieces of metadata are used to add further value to this graph.

The most notable piece of metadata is the addition of clickable buttons that open news stories relating to time periods in the graph. This simple feature adds a great deal of value in that they help to explain the graph or show what occurred in response to an event. For example, notice the story that unfolds in this example when George Bush's presidential approval rating climbed dramatically as a result of how he responded to the September 11 attacks.

The second piece of metadata is the brief story that is told explaining the key outcomes of the graph. This paragraph above the graph provides a quick description of the story being presented. It is critical however, that this story does not exceed a few sentences as otherwise its meaning will be lost. Its purpose should be complimentary to, and provide users with the main points of the graph.

The third piece of metadata is the tabular format used in this example. Note how the presidential rating is only a small part of the wider terrorism story and the various tabs provide further value. More often than not stories are part of a bigger picture and providing linkage or context to similar stories is very beneficial.

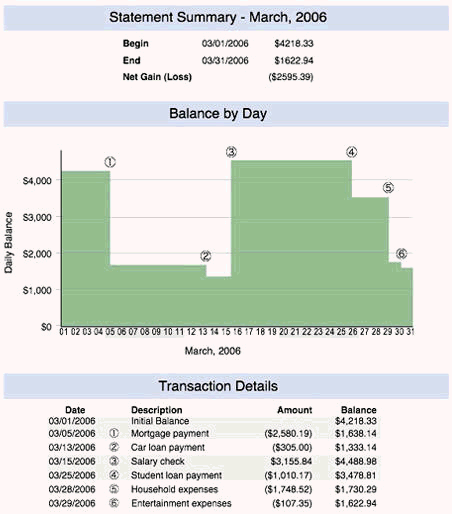

Another example of providing contextual information to a graph can be seen in Figure 31. However instead of using news stories and clickable buttons, transactions and reference numbers are used. This format would be simpler to implement and may work better for illustrating statistical changes, however it would not have the visual impact of the BBC example.

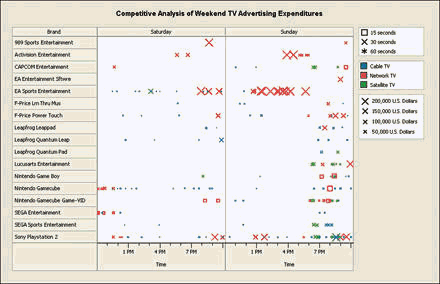

A problem with many static two-dimensional graphs is their inability to display multiple variables. Although interactive graphs may have the ability to change the variables on each axis, move the data around, change the time period and show animation, static 2D graphs still have their place and role in telling statistical stories.

Showing multiple variables on a graph is not necessarily a difficult task. However the difficulty lies in presenting the information in a format that is easy to view, understand and take stories away from. Figure 32 is an excellent example of this. In simple terms the graph is trying to display when various companies advertise on television over a certain weekend.

Note how time is incorporated into this graph. Instead of a standard x-axis time scale the days are illustrated at the top and the hours being analysed can be seen at the base of the graph. It also only shows the time from 12pm to 12am each day, which is the prime advertising period. This is very beneficial in that narrowing the time period down to the smallest amount possible without losing any critical data will assist with usability.

The second key feature to illustrating this data can be seen in the three legends on the right hand side of the graph. They help to show that the points within the graph each have an element of data associated with them based on their shape, colour and size. The shape illustrates how long the commercial was, the colour indicates on what type of television the commercial was aired on and the size illustrates how much money was paid for the advertising. Based on all these factors stories unfold within the graph. For example it can be seen that EA Sports Entertainment spend a lot of money and focus heavily on advertising on a Sunday afternoon on Network television. If thought about, a strong marketing ploy unfolds that focuses on selling sporting games to an audience enjoying watching the football or baseball on a Sunday afternoon.

The key to adding multiple variables to a graph lies in its balance. A balance must be achieved so that one variable does not overpower the rest of the graph and that all graphs are distinguishable in shape, colour, size etc. Reference points and scales are also very important. For example it is difficult to identify the data points associated with Leapfrog Quantum Pad due to the fact that they only advertise late on a Sunday. Many users may find it difficult to move their eyes straight across the page and reference the data points.

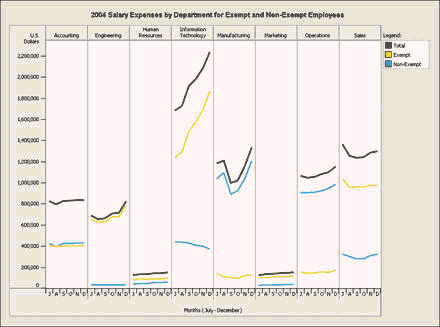

Another example of showing multiple variables in this format can be seen in Figure 33. It takes great advantage of the x-axis to show time-series data by dividing it by department and maintaining a constant time period for each. In a glance users can witness how each department of this business has performed and at an approximate expense level. The colour coding of total, exempt and non-exempt expenses is useful, although additional value could be provided by illustrating targets or allocated expense budgets through either a dotted line graph or column graph in each department.

NATIONMASTER

NationMaster is a website that describes itself as "a handy way to graphically compare nations." (NationMaster, 2006) It collects data from a wide range of respected statistical sources, including the CIA World Factbook, the UN and OECD, to provide a "central data source."

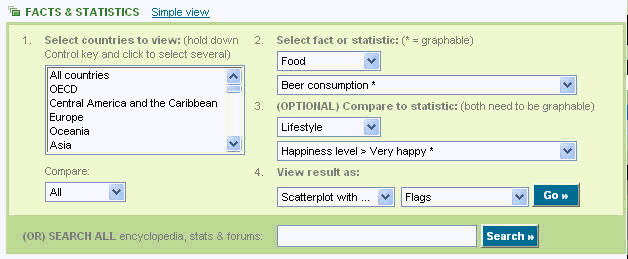

Figure 34 illustrates one effective way to search for statistics on this website. Through drop-down boxes and a selection box, users are able to quickly find and possibly compare statistics. The additional information in brackets assists users in making sure they are presented with the statistics they have requested. For accessibility a text version of these lists is also presented, as well as a search function so that all users should be able to find their desired statistics.

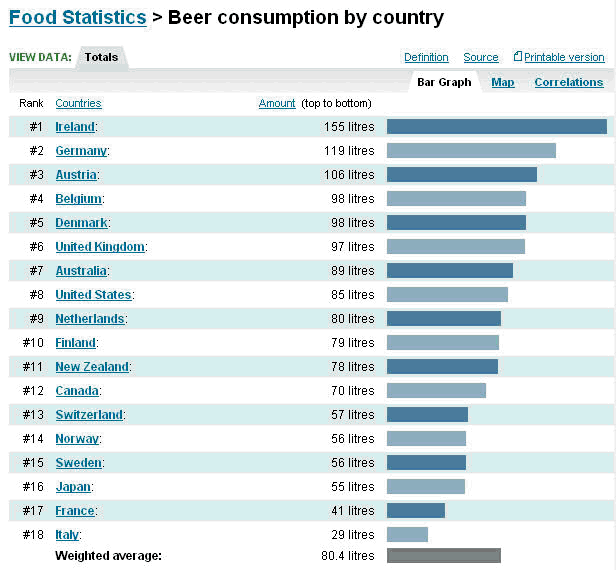

There are four graphical means of displaying statistical data with NationMaster, available by selecting the 'View result as:' drop-down list. The entry point and most basic of these is the Bar Graph. It reflects the ideas of sparklines as presented in Figure 35 relating to in-cell bar graphs. The length of the bar refers to the percentage value of the statistic in relation to the first ranking country.

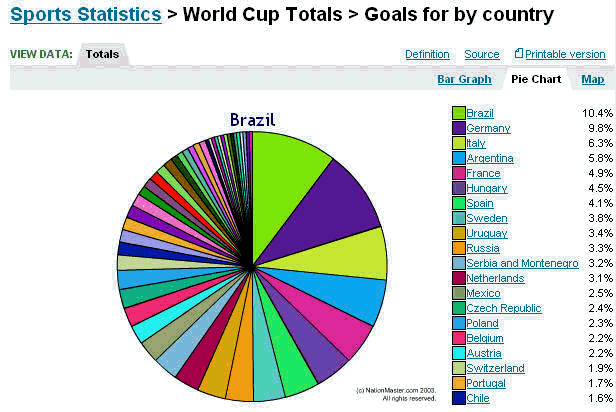

A Pie Graph is presented as another way of displaying the statistical data in NationMaster. It has a mouse-over function, which highlights the country being represented by a segment, plus the ability to click on a segment and drill-down to further information. Figure 36 is an example. A major problem with using a pie graph can be seen in this example. With so many countries being represented by a segment it appears crowded, cluttered and difficult to distinguish. However, NationMaster assists with this problem by the ability to view only the top five countries, thus reducing the clutter associated with the smaller figures.

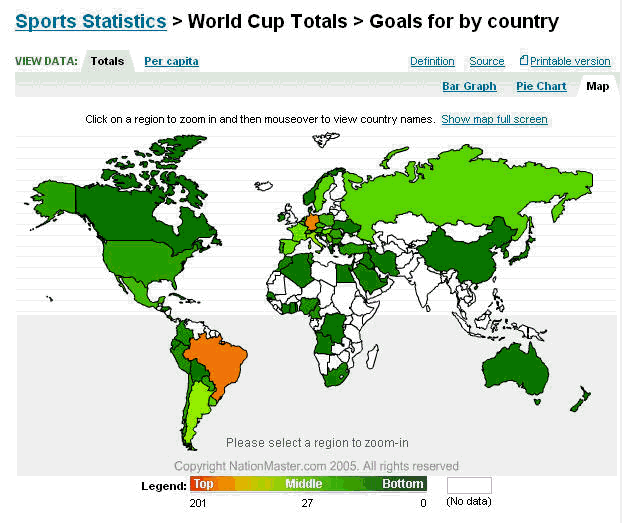

The third way of displaying data is through a map, see Figure 37. It essentially works the same way as the pie graph in that colours are used to represent the country's data, by hovering over an area the name of the country is displayed and by clicking on the country the user will be able to drill-down to further information. The other useful features include the ability to zoom in and the full screen options. The zoom in function works really well in that it operates quickly and allows the user to get a closer look at regions like Europe where there are many small nations. The full screen option is a simple feature that does exactly what its name suggests. From a usability perspective, these ideas are only small, but provide additional value for many users.

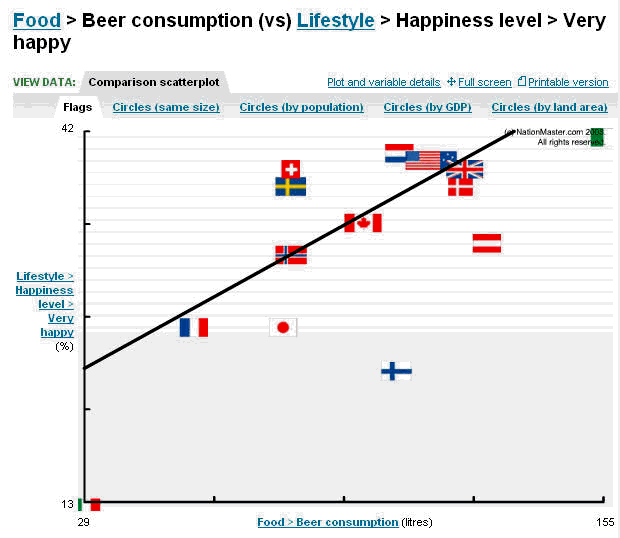

A fourth graphical technique is the Comparison scatterplot, as seen in Figure 38. It reflects the Gapminder concept of comparing any two variables on a graph with the only difference being that there is no animation of the time variable. This may appear to be major disadvantage, however from a technical and usability perspective this tool has its advantages. Without a Gapminder product currently available this option may present a simpler technique that could be produced and disseminated quickly. It also takes away the movement and animation that may confuse or distract many users.

To compare two variables the search tool in Figure 34 can be used or alternatively when viewing certain statistical pages the option is available to view correlations, as seen in the tab structure of Figure 35. This correlations list provides the user with a list of the most accurate correlations that exist in relation to the chosen statistic. Any two statistics with graphical capabilities have the ability to be compared in this format.

Another great feature of this technique is the ability to change the icon relating to the data points. The use of flags for countries is instantly recognisable for many users, although it does rely upon some user knowledge. The other option to use circles also works well and allows for the introduction of a further variable in population, GDP or land area. Further drill-down possibilities, by clicking on the flags or circles, is also available.
